Home Screen

Flame Style

Custom Flame Style

Favorites Carousel

Downlight Options

Ember Bed Options

Heater Options

Timer Options

Home Screen

Flame Style

Custom Flame Style

Favorites Carousel

Downlight Options

Ember Bed Options

Heater Options

Timer Options

Download Here

Download Here

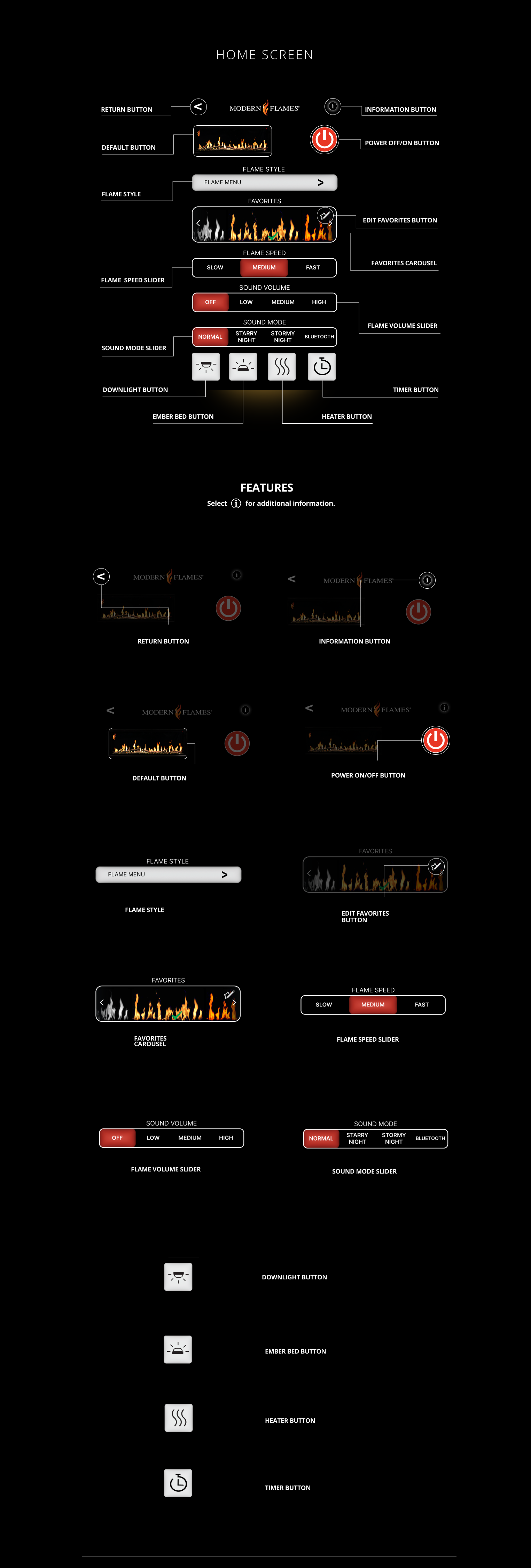

Desktop_HomeScreen

Returns to the previous page. PRESS ONCE.

Turns the fireplace on and off. PRESS ONCE: Note: When the Power Button shows GREEN, the fireplace is OFF. When the Power Button shows RED, the fireplace is ON.

Displays the information page. A window will pop-up showing additional information about the app.

Returns the fireplace to the default color settings. PRESS ONCE: Flame video changes to flame style 1, color yellow. Ember bed and down light changes to orange. Flame speed changes to medium and sound level changes to low.

Opens the flame syle sub-menu for selecting flame styles and colors. 4 styles with 6 colors. PRESS ONCE: Opens the flame style sub-menu page to select a new flame style.

Opens the Favorites sub-menu for selecting favorite flame styles. Up to 6 favoritesmay be selected. PRESS ONCE: Opens the Favorites sub-menu page to select favorite flame styles.

Opens the timer sub-menu. PRESS ONCE: Opens the timer sub-menu for timer related functions.

Opens the downlight sub-menu. PRESS ONCE: Opens the downlight sub-menu page to select new colors for downlighting.

Opens the heater sub-menu. PRESS ONCE: Opens the heater sub-menu to make changes to the heater settings.

Changes the sound effect volume of the fireplace between 4 different volumes. Can cycle between OFF, LOW (default), MEDIUM, HIGH. SLIDE TO THE OFF POSITION: Sound effects are turned off. Fireplace displays: S0. SLIDE TO THE LOW POSITION: Sound effects are at the middle sound level. Fireplace displays: S2. SLIDE TO THE HIGH POSITION: Sound effects are the highest sound level. Fireplace displays: S3.

Allows for easy selection of the fuser selected favorited flame styles. Up to 6 flames styles may be selected. SLIDING TO THE LEFT/RIGHT: Scrolls through the available favorited flame styles. PRESS ONCE: The fireplace switches to the selected flame style. A green checkmark indicates the selected flame style.

Opens the ember bed sub-menu. PRESS ONCE: Opens the ember bed sub-menu page to select new colors for the ember bed.

Changes the sound mode of fireplace. Cycles between NORMAL, STARRY NIGHT, STORMY NIGHT, and BLUETOOTH. SLIDE TO THE SLOW POSITION: Flame moves at the slowest speed. Fireplace displays: 01. SLIDE TO THE MEDIUM POSITION: Flame moves at the default speed. Fireplace displays: 02. SLIDE TO THE FAST POSITION: Flame moves at the fastest speed. Fireplace displays: 03.

Changes the flame speed of the currently displayed flame. Cycles between SLOW, MEDIUM (default), and FAST. SLIDE TO THE SLOW POSITION: Flame moves at the slowest speed. Fireplace displays: 01. SLIDE TO THE MEDIUM POSITION: The fireplace switches to the selected flame style. A green checkmark indicates the selected flame style.

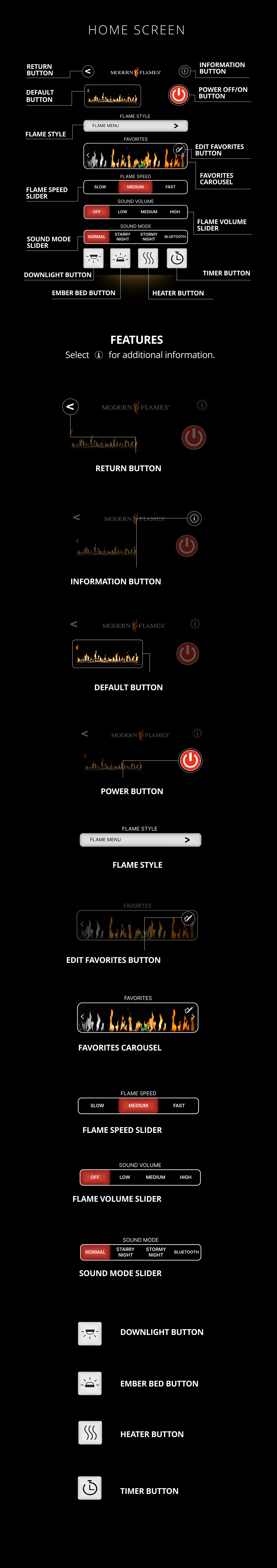

Phone_HomeScreen

Returns to the previous page. PRESS ONCE.

Displays the information page. A window will pop-up showing additional information about the app.

Returns the fireplace to the default color settings. PRESS ONCE: Flame video changes to flame style 1, color yellow. Ember bed and down light changes to orange. Flame speed changes to medium and sound level changes to low.

Turns the fireplace on and off. PRESS ONCE: Note: When the Power Button shows GREEN, the fireplace is OFF. When the Power Button shows RED, the fireplace is ON.

Opens the flame syle sub-menu for selecting flame styles and colors. 4 styles with 6 colors. PRESS ONCE: Opens the flame style sub-menu page to select a new flame style.

Opens the Favorites sub-menu for selecting favorite flame styles. Up to 6 favoritesmay be selected. PRESS ONCE: Opens the Favorites sub-menu page to select favorite flame styles.

Allows for easy selection of the fuser selected favorited flame styles. Up to 6 flames styles may be selected. SLIDING TO THE LEFT/RIGHT: Scrolls through the available favorited flame styles. PRESS ONCE: The fireplace switches to the selected flame style. A green checkmark indicates the selected flame style.

Changes the flame speed of the currently displayed flame. Cycles between SLOW, MEDIUM (default), and FAST. SLIDE TO THE SLOW POSITION: Flame moves at the slowest speed. Fireplace displays: 01. SLIDE TO THE MEDIUM POSITION: The fireplace switches to the selected flame style. A green checkmark indicates the selected flame style.

Changes the sound effect volume of the fireplace between 4 different volumes. Can cycle between OFF, LOW (default), MEDIUM, HIGH. SLIDE TO THE OFF POSITION: Sound effects are turned off. Fireplace displays: S0. SLIDE TO THE LOW POSITION: Sound effects are at the middle sound level. Fireplace displays: S2. SLIDE TO THE HIGH POSITION: Sound effects are the highest sound level. Fireplace displays: S3.

Changes the sound mode of fireplace. Cycles between NORMAL, STARRY NIGHT, STORMY NIGHT, and BLUETOOTH. SLIDE TO THE SLOW POSITION: Flame moves at the slowest speed. Fireplace displays: 01. SLIDE TO THE MEDIUM POSITION: Flame moves at the default speed. Fireplace displays: 02. SLIDE TO THE FAST POSITION: Flame moves at the fastest speed. Fireplace displays: 03.

Opens the downlight sub-menu. PRESS ONCE: Opens the downlight sub-menu page to select new colors for downlighting.

Opens the ember bed sub-menu. PRESS ONCE: Opens the ember bed sub-menu page to select new colors for the ember bed.

Opens the heater sub-menu. PRESS ONCE: Opens the heater sub-menu to make changes to the heater settings.

Opens the timer sub-menu. PRESS ONCE: Opens the timer sub-menu for timer related functions.

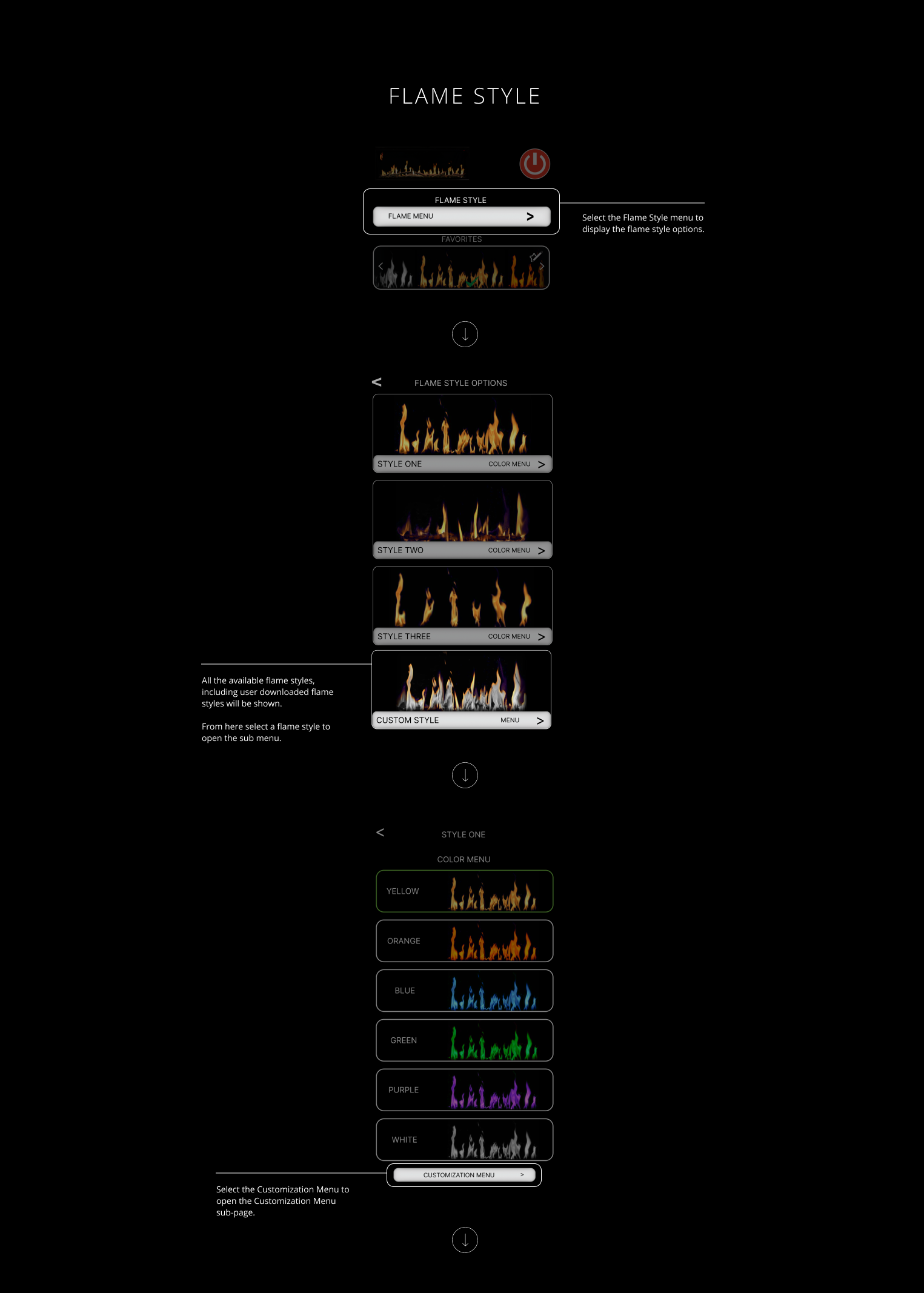

Desktop_FlameStyle

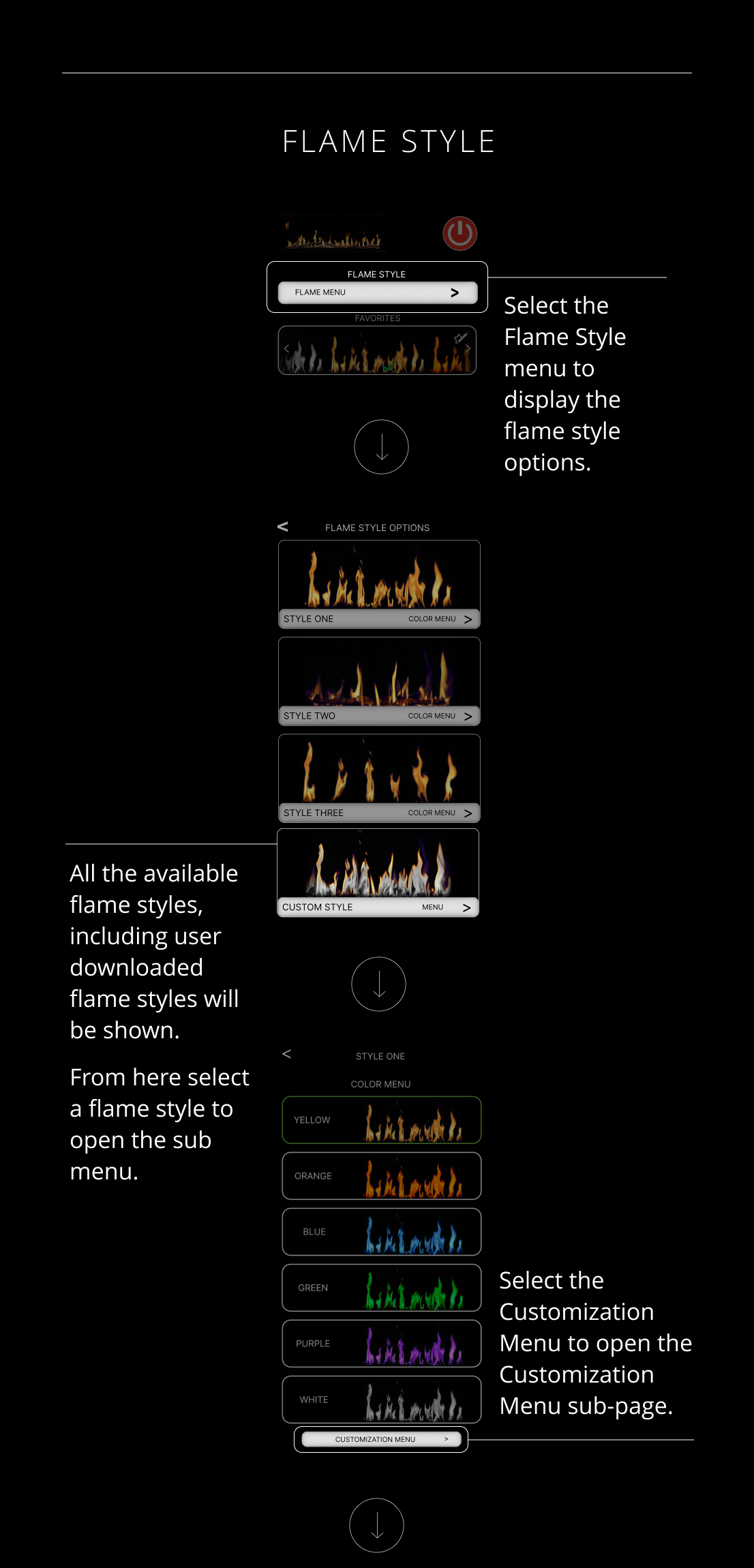

Phone_FlameStyle

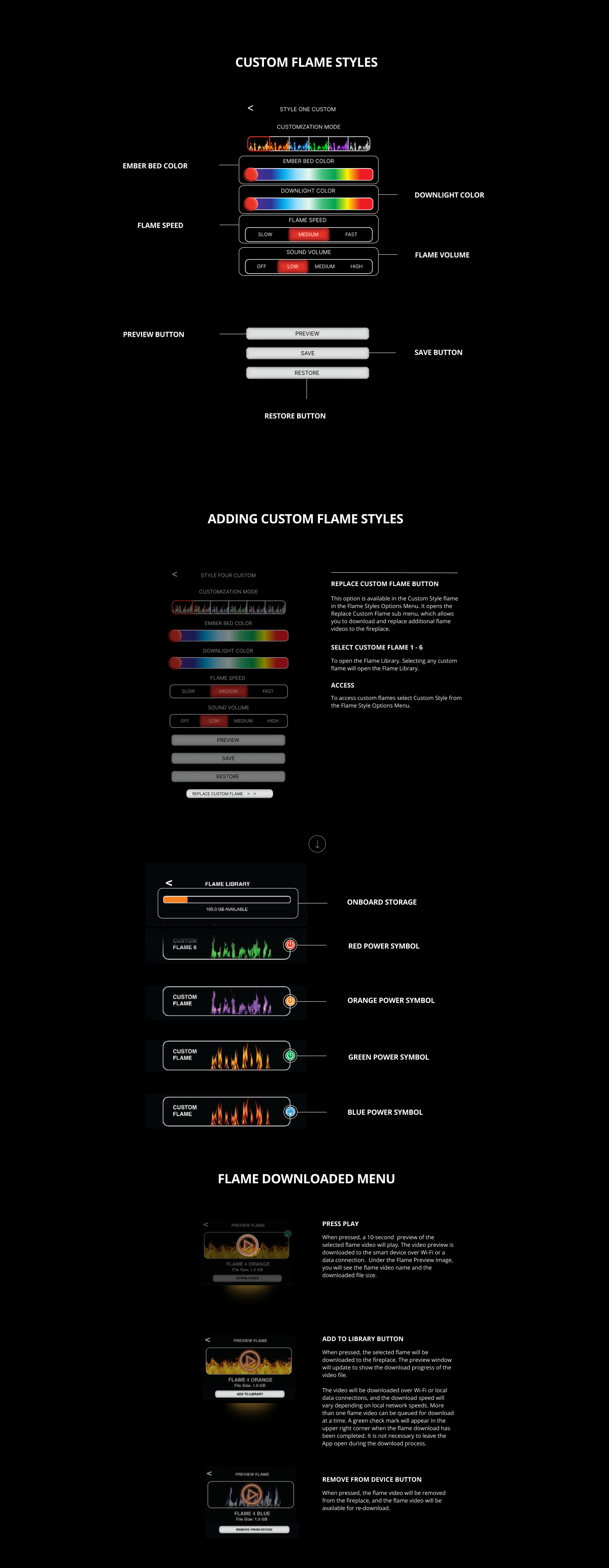

Desktop_CustomFlameStyle

Changes the ember bed color to the selected color.

Shows a flame preview of the selected options. Changes the fireplace to show to the current configuration of selections for 10 seconds. Does not save the current configuration.

Saves the current configuration of selections as the flame preset.

The selected flame is downloaded to the fireplace and is currently in use in a different Custom Flame slot. If pressed, no action will be taken as the flame is currently in use in a different Custom Flame slot and cannot be active in two slots.

Changes the flame speed of currently selected flame preset. Cycles between: SLOW (fireplace will display 01). MEDIUM (fireplace will display 02). FAST (fireplace will display 03).

Changes the downlight color to the selected color.

Changes the sound effect volume of the fireplace between 4 different volumes. Can cycle between: OFF (fireplace will display S0). LOW (fireplace will display S1). MEDIUM (fireplace will display S2). HIGH (fireplace will display S3)

Changes the ember bed color to the selected color.

The selected flame is downloaded to the fireplace and is available for use in the current Custom Flame slot. Press the button once, and the power symbol will turn green to indicate that it is now in use.

Indicates whether the selected flame is available to download onto the fireplace. Press the flame button once to download the selected flame onto the fireplace. If you press the download symbol, the Flame Preview window will not appear. Once downloaded, the symbol will change from the blue download symbol to the red power symbol.

Displays the available storage space for downloads on the fireplace.

The selected flame is in use in the current Custom Flame slot. Press the button and the green power symbol will turn red to indicate that the flame is no longer in use.

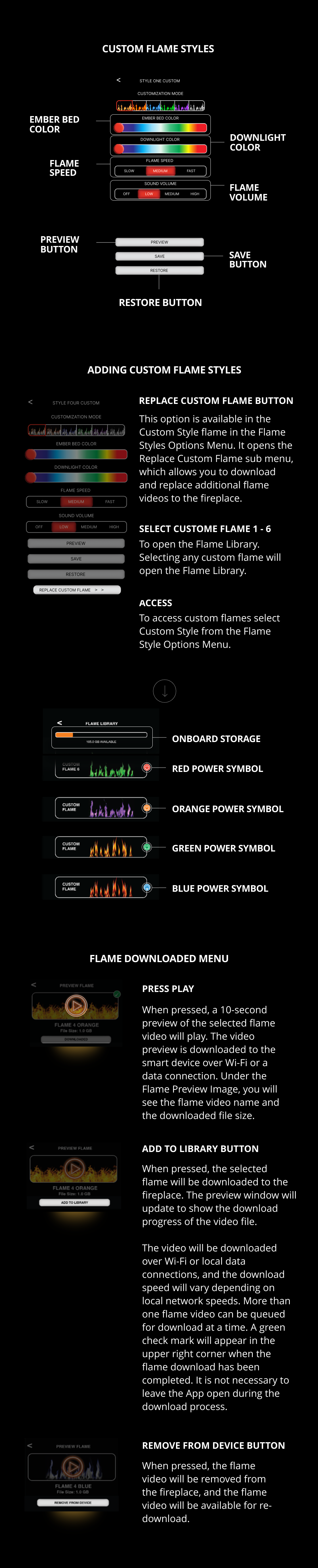

Phone_CustomFlameStyle

Changes the ember bed color to the selected color.

Changes the flame speed of currently selected flame preset. Cycles between: SLOW (fireplace will display 01). MEDIUM (fireplace will display 02). FAST (fireplace will display 03).

Changes the downlight color to the selected color.

Changes the sound effect volume of the fireplace between 4 different volumes. Can cycle between: OFF (fireplace will display S0). LOW (fireplace will display S1). MEDIUM (fireplace will display S2). HIGH (fireplace will display S3)

Shows a flame preview of the selected options. Changes the fireplace to show to the current configuration of selections for 10 seconds. Does not save the current configuration.

Saves the current configuration of selections as the flame preset.

Changes the ember bed color to the selected color.

Displays the available storage space for downloads on the fireplace.

The selected flame is downloaded to the fireplace and is available for use in the current Custom Flame slot. Press the button once, and the power symbol will turn green to indicate that it is now in use.

The selected flame is downloaded to the fireplace and is currently in use in a different Custom Flame slot. If pressed, no action will be taken as the flame is currently in use in a different Custom Flame slot and cannot be active in two slots.

The selected flame is in use in the current Custom Flame slot. Press the button and the green power symbol will turn red to indicate that the flame is no longer in use.

Indicates whether the selected flame is available to download onto the fireplace. Press the flame button once to download the selected flame onto the fireplace. If you press the download symbol, the Flame Preview window will not appear. Once downloaded, the symbol will change from the blue download symbol to the red power symbol.

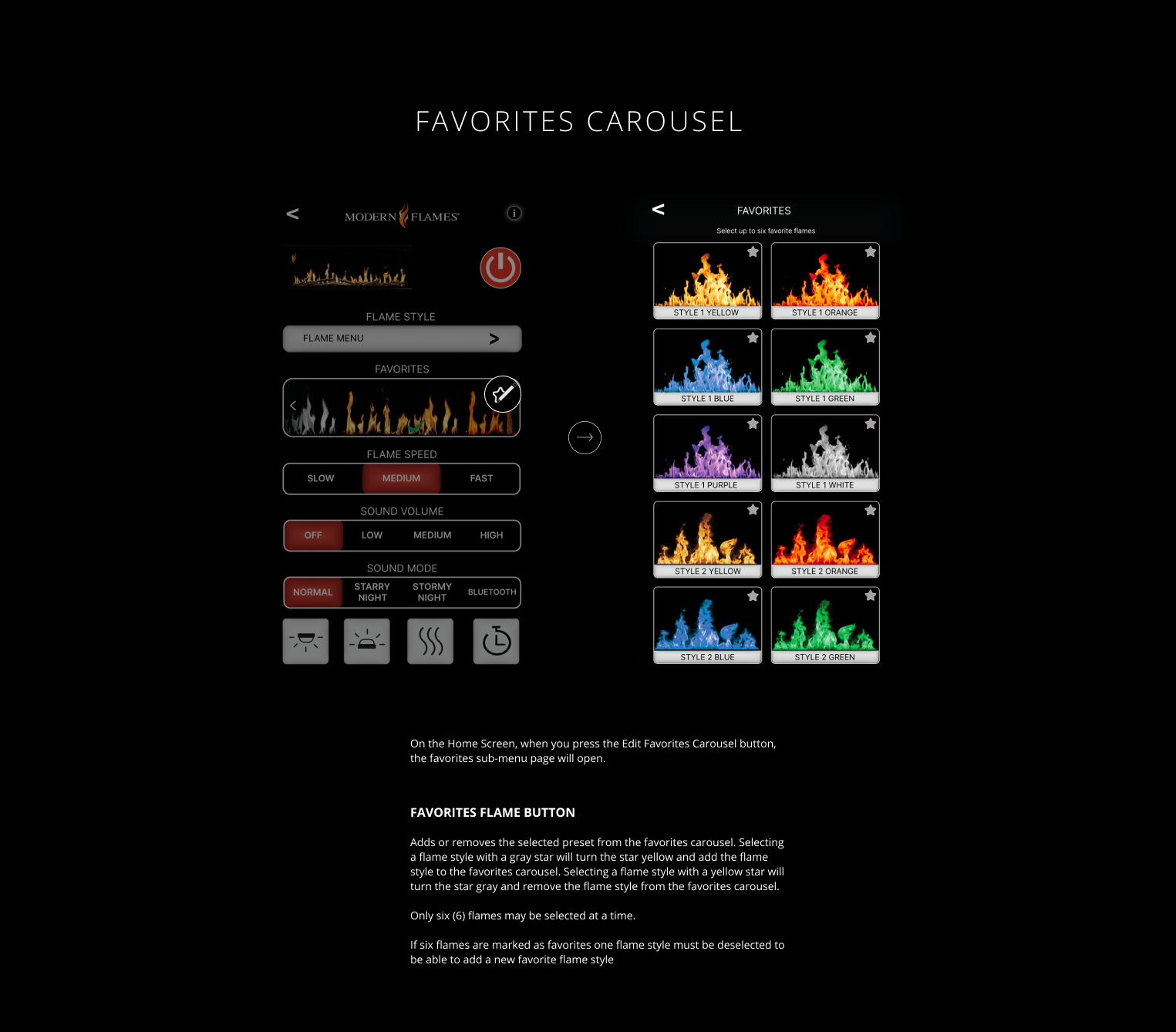

Desktop_FavoritesCarousel

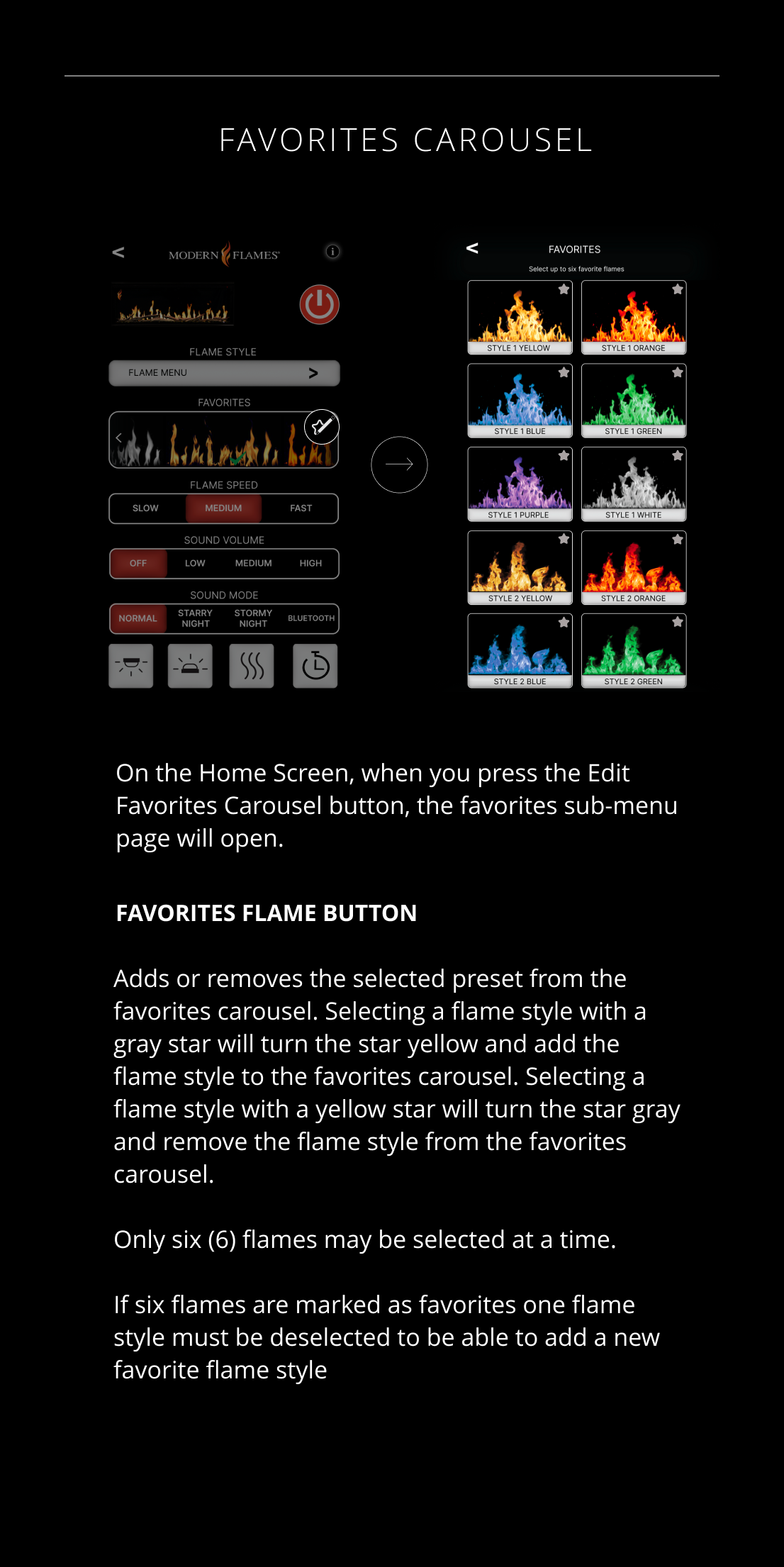

Phone_FavoritesCarousel

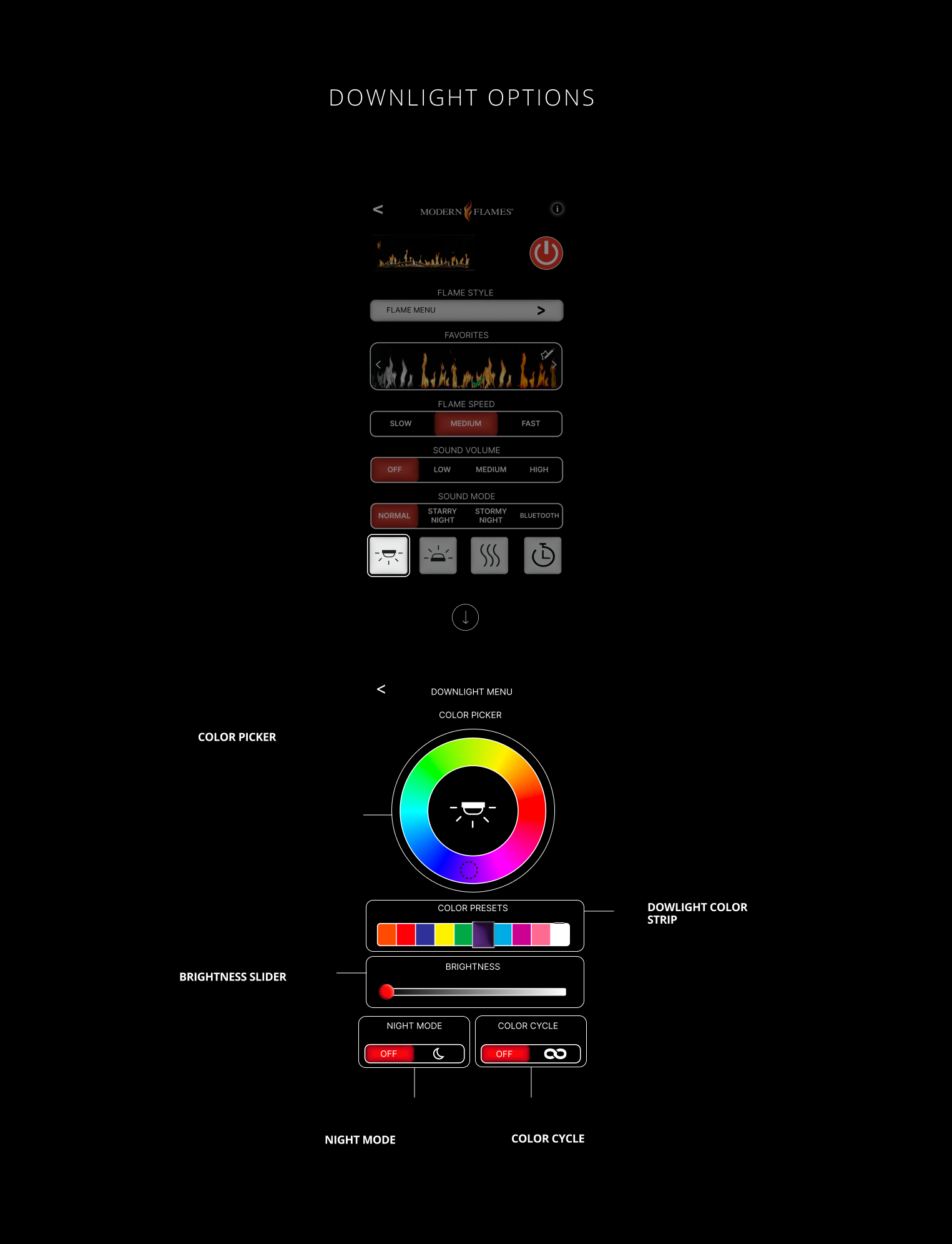

Desktop_DownlightOptions

Adjusts the downlight color bases on the location of the circle cursor. Move the cursor around the color wheel until the desired color is selected. The downlight on the fireplace will change to the selected color.

Changes the downlight color based on the preset color selected. Select your desired color to change the downlight to the preset color. The circle cursor on the color wheel snaps to the preset color on the color wheel.

Enables night mode. If the moon symbol is selected, the downlight is on and all other functions of the fireplace are off. When the switch is in the OFF position, and the fireplace will function as normal.

If the infinity symbol is selected, the fireplace will cycle the downlight colors between all colors shown on the color strip. Slide to the OFF position, and the downlight will reamin a solid color.

Changes the brightness of the ember bed. Slide the red indicator to the left to dim the brightness; sliding it to the right will increase the brightness.

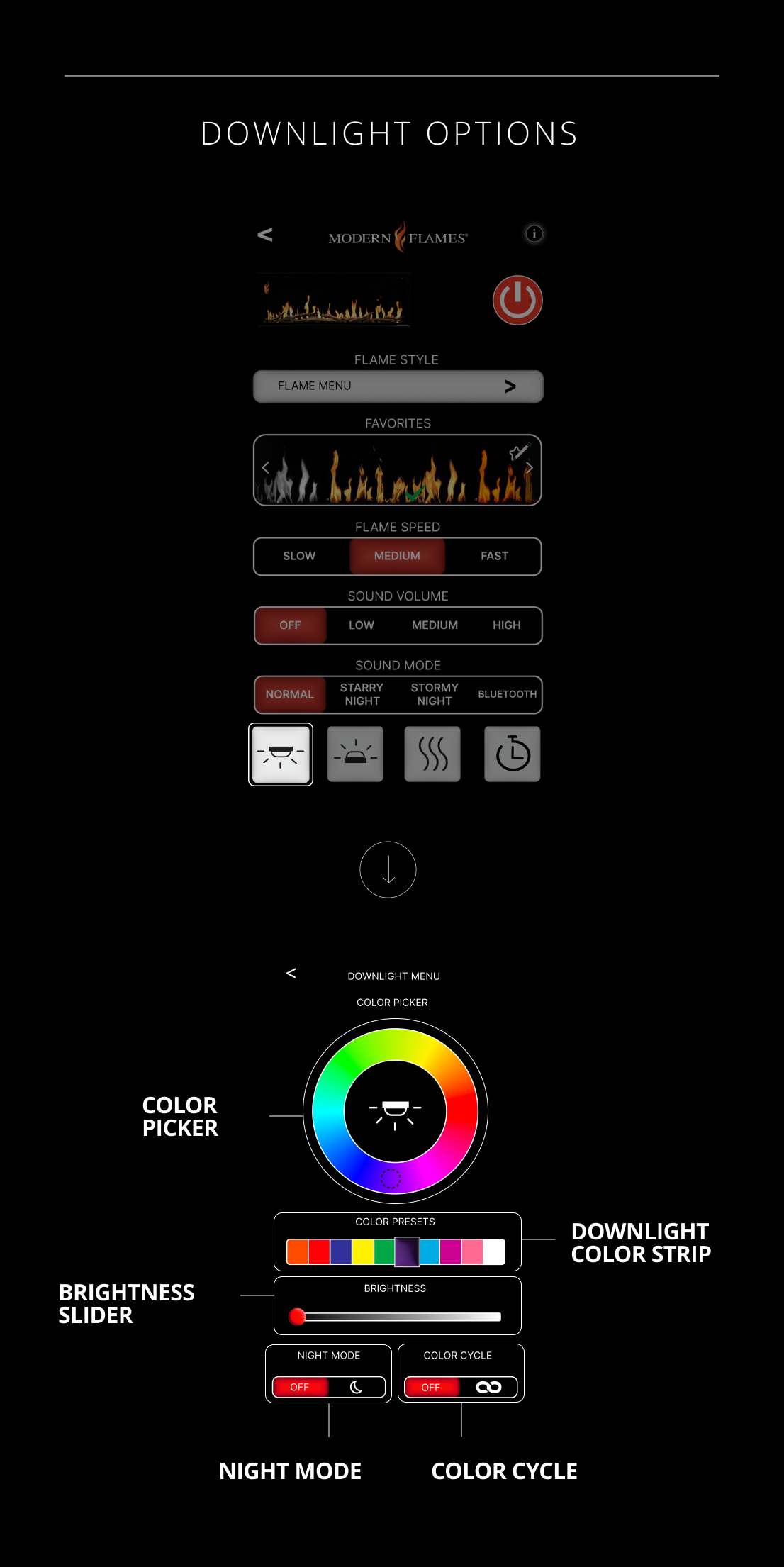

Phone_DownlightOptions

Adjusts the downlight color bases on the location of the circle cursor. Move the cursor around the color wheel until the desired color is selected. The downlight on the fireplace will change to the selected color.

Changes the downlight color based on the preset color selected. Select your desired color to change the downlight to the preset color. The circle cursor on the color wheel snaps to the preset color on the color wheel.

Changes the brightness of the ember bed. Slide the red indicator to the left to dim the brightness; sliding it to the right will increase the brightness.

Enables night mode. If the moon symbol is selected, the downlight is on and all other functions of the fireplace are off. When the switch is in the OFF position, and the fireplace will function as normal.

If the infinity symbol is selected, the fireplace will cycle the downlight colors between all colors shown on the color strip. Slide to the OFF position, and the downlight will reamin a solid color.

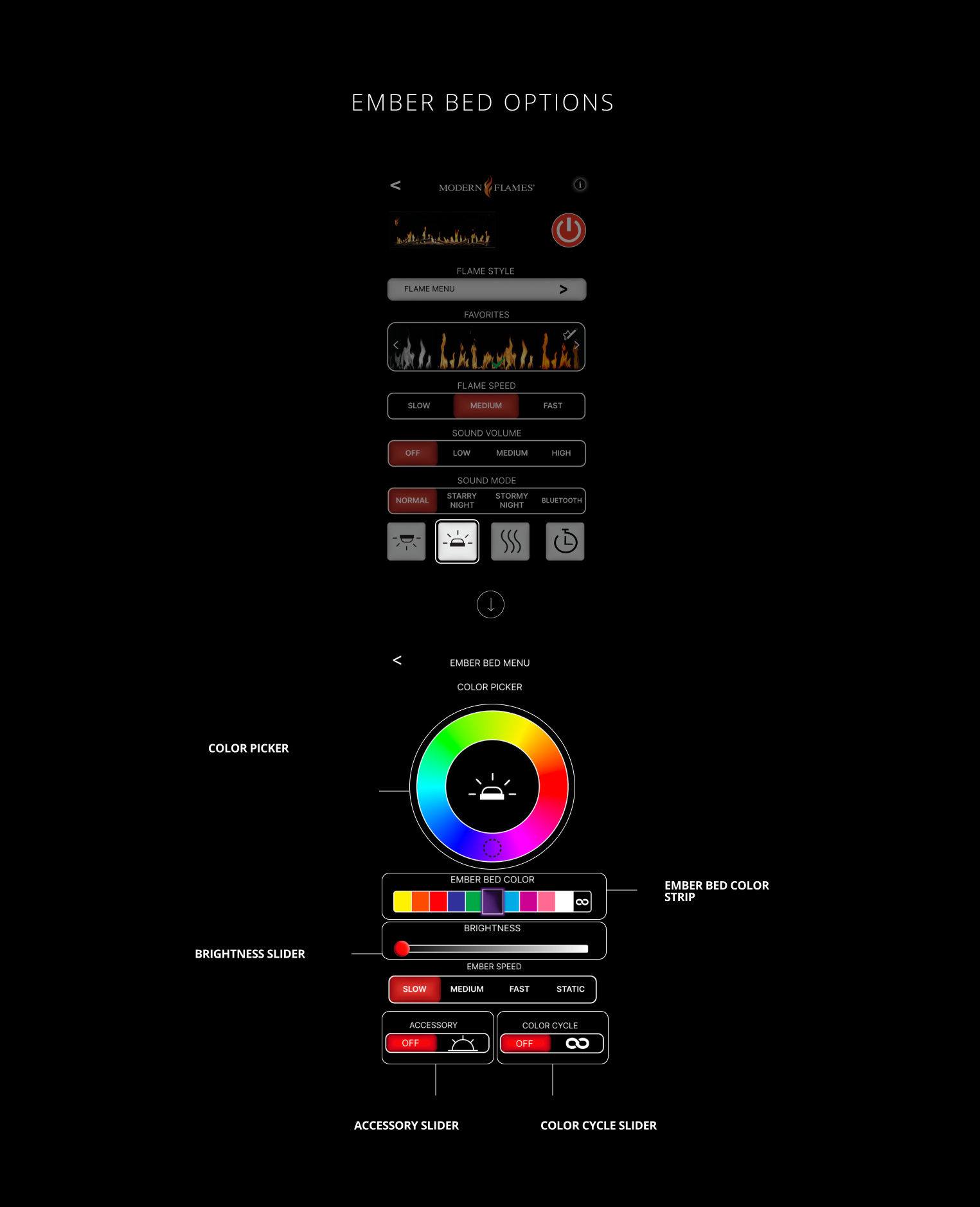

Desktop_EmberBedOptions

Adjusts the ember bed color based on the location of the circle cursor. Move the cursor around the color wheel until the desired color is selected. The ember bed in the fireplace will change to the selected color.

Changes the brightness of the ember bed. Slide the red indicator to the left to dim the brightness; sliding it to the right will increase the brightness.

Changes the ember bed color based on the preset color selected. Select your desired color to change the ember bed to the preset color. The circle cursor on the color wheel will snap to the preset color on the color wheel.

Enables the ember bed accessory, not available on all models. Slide to OFF position to turn the ember bed accessory off. Slide to ON (Sun) position to turn the ember bed accessory on.

If the infinity symbol is selected, the fireplace cycles the ember bed colors between all colors shown on the color strip. Slide to the OFF position, and the downlight will remain on.

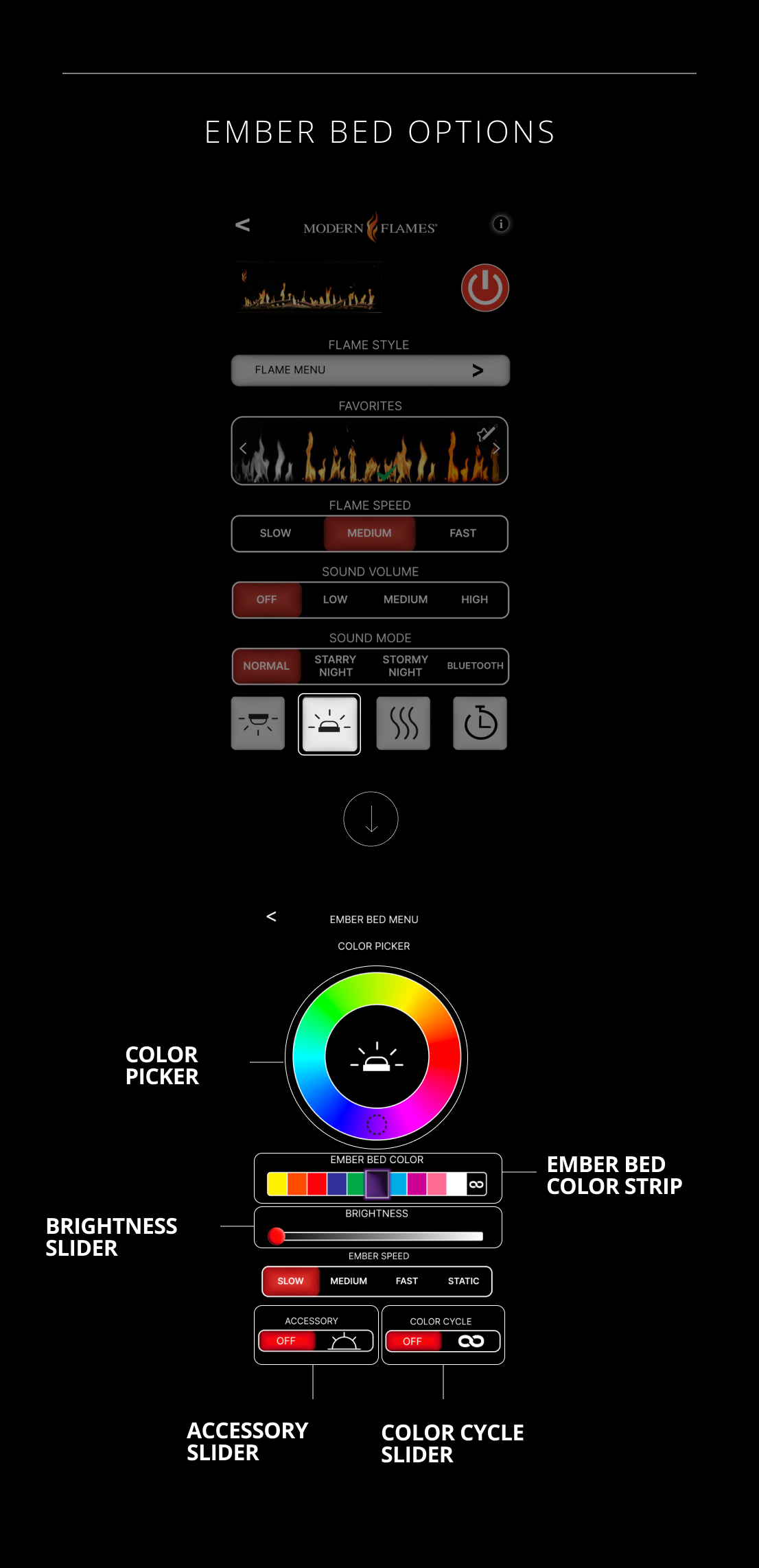

Phone_EmberBedOptions

Adjusts the ember bed color based on the location of the circle cursor. Move the cursor around the color wheel until the desired color is selected. The ember bed in the fireplace will change to the selected color.

Changes the brightness of the ember bed. Slide the red indicator to the left to dim the brightness; sliding it to the right will increase the brightness.

Changes the ember bed color based on the preset color selected. Select your desired color to change the ember bed to the preset color. The circle cursor on the color wheel will snap to the preset color on the color wheel.

Enables the ember bed accessory, not available on all models. Slide to OFF position to turn the ember bed accessory off. Slide to ON (Sun) position to turn the ember bed accessory on.

If the infinity symbol is selected, the fireplace cycles the ember bed colors between all colors shown on the color strip. Slide to the OFF position, and the downlight will remain on.

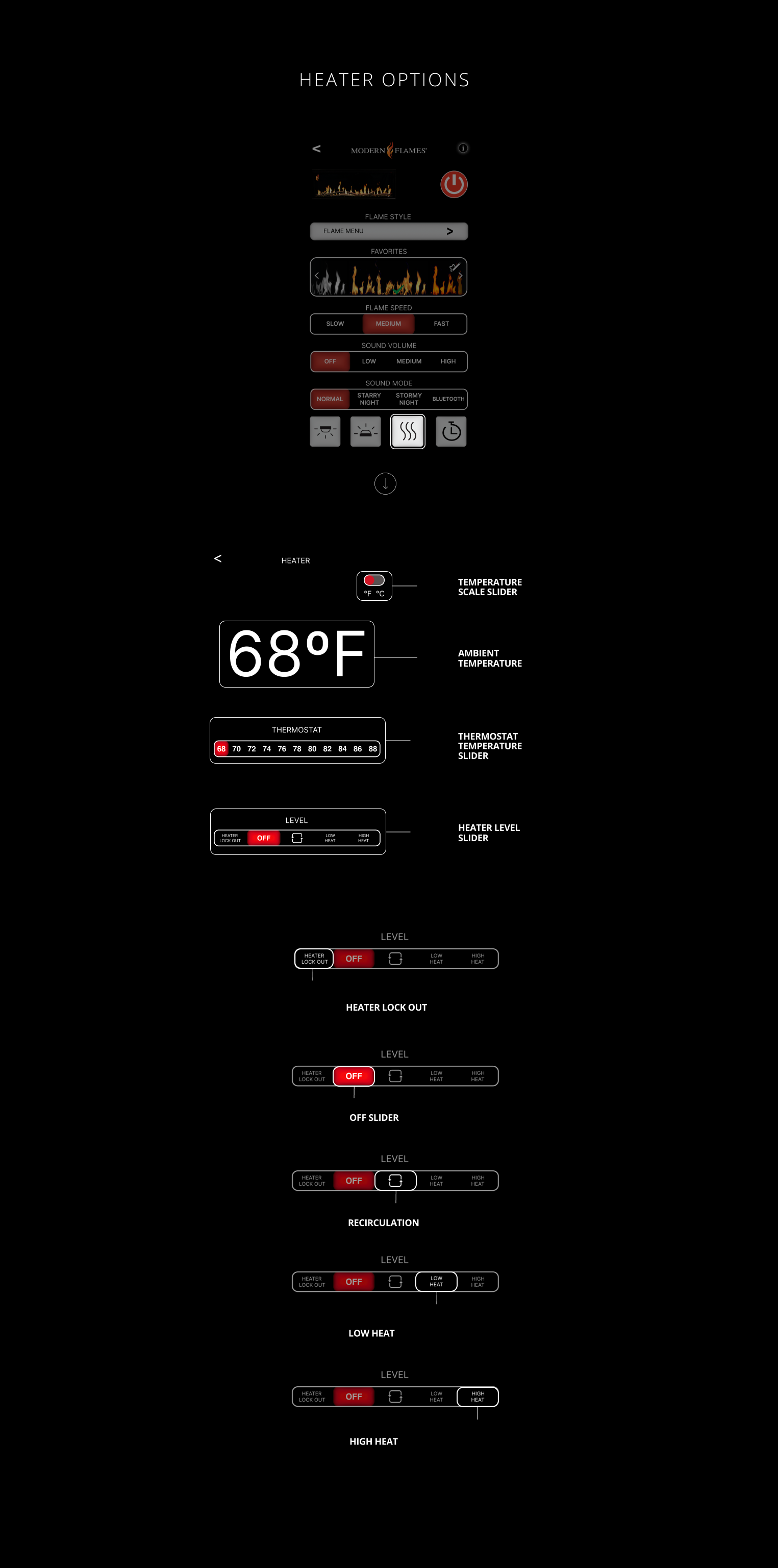

Desktop_HeaterOptions

Changes between Fahrenheit and Celsius. Slide the red indicator to F to change the scale of the ambient temperature, thermostat selector, and fireplace to Fahrenheit. Slide the red indicator to C to change the scale of the ambient temperature, thermostat selector, and fireplace to Celsius.

The ambient air temperature reading of the fireplace.

Changes the thermostat value of the fireplace, enabling or disabling the heater at the set temperature. Slide the red indicator to a preset position to change the thermostat to the selected number. The heater will turn on until the ambient temperature reaches the selected thermostat value. The heater will turn off once the ambient temperature equals or exceeds the thermostat value.

Adjusts the heater's operation to one of the following settings: Locked Out, Off, Recirculation (fan only), Low Heat, or High Heat.

The heater will run at high power (5,000 BTUs if wired to 120V power, 10,000 BTUs if wired to 240V power)

Prevents the heater from being turned on by the remote or touch controls. If power to the unit is cut off the heater lockout will be disabled and the heater will return to default operations.

Will turn the heater off.

The fan will recirculate air, but the heater will be off.

The heater will run at low power (2,500 BTUs if wired to 120V power, 5,000 BTUs if wired to 240V power)

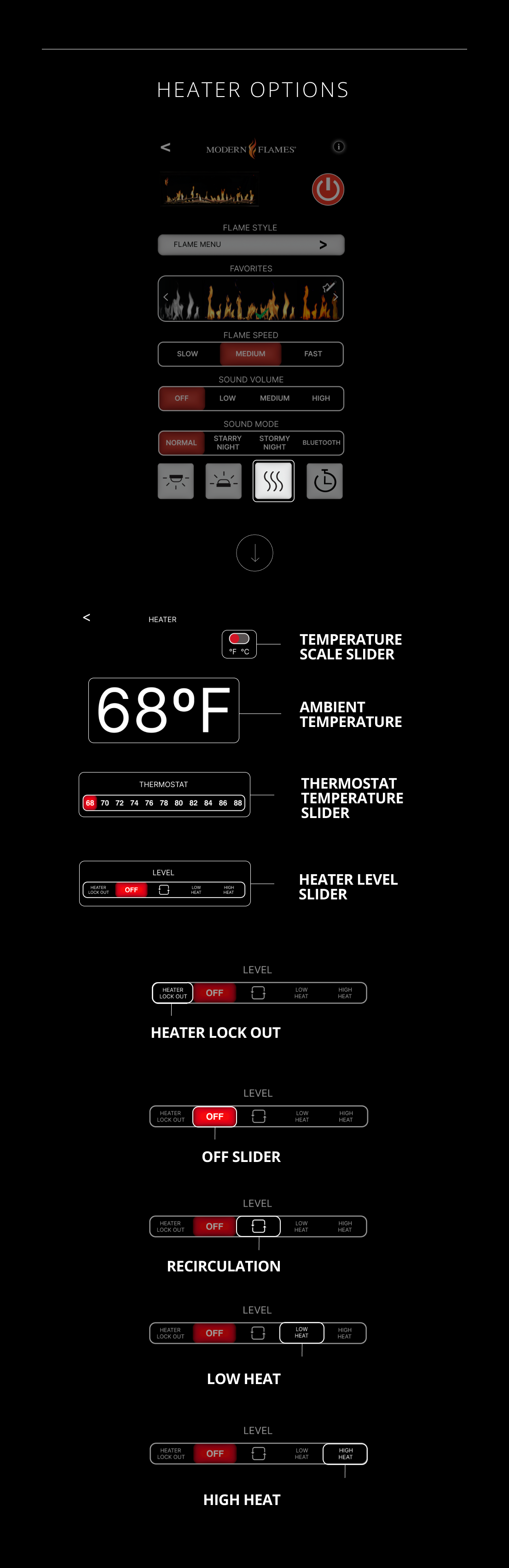

Phone_HeaterOptions

Changes between Fahrenheit and Celsius. Slide the red indicator to F to change the scale of the ambient temperature, thermostat selector, and fireplace to Fahrenheit. Slide the red indicator to C to change the scale of the ambient temperature, thermostat selector, and fireplace to Celsius.

The ambient air temperature reading of the fireplace.

Changes the thermostat value of the fireplace, enabling or disabling the heater at the set temperature. Slide the red indicator to a preset position to change the thermostat to the selected number. The heater will turn on until the ambient temperature reaches the selected thermostat value. The heater will turn off once the ambient temperature equals or exceeds the thermostat value.

Adjusts the heater's operation to one of the following settings: Locked Out, Off, Recirculation (fan only), Low Heat, or High Heat.

Prevents the heater from being turned on by the remote or touch controls. If power to the unit is cut off the heater lockout will be disabled and the heater will return to default operations.

Will turn the heater off.

The fan will recirculate air, but the heater will be off.

The heater will run at low power (2,500 BTUs if wired to 120V power, 5,000 BTUs if wired to 240V power)

The heater will run at high power (5,000 BTUs if wired to 120V power, 10,000 BTUs if wired to 240V power)

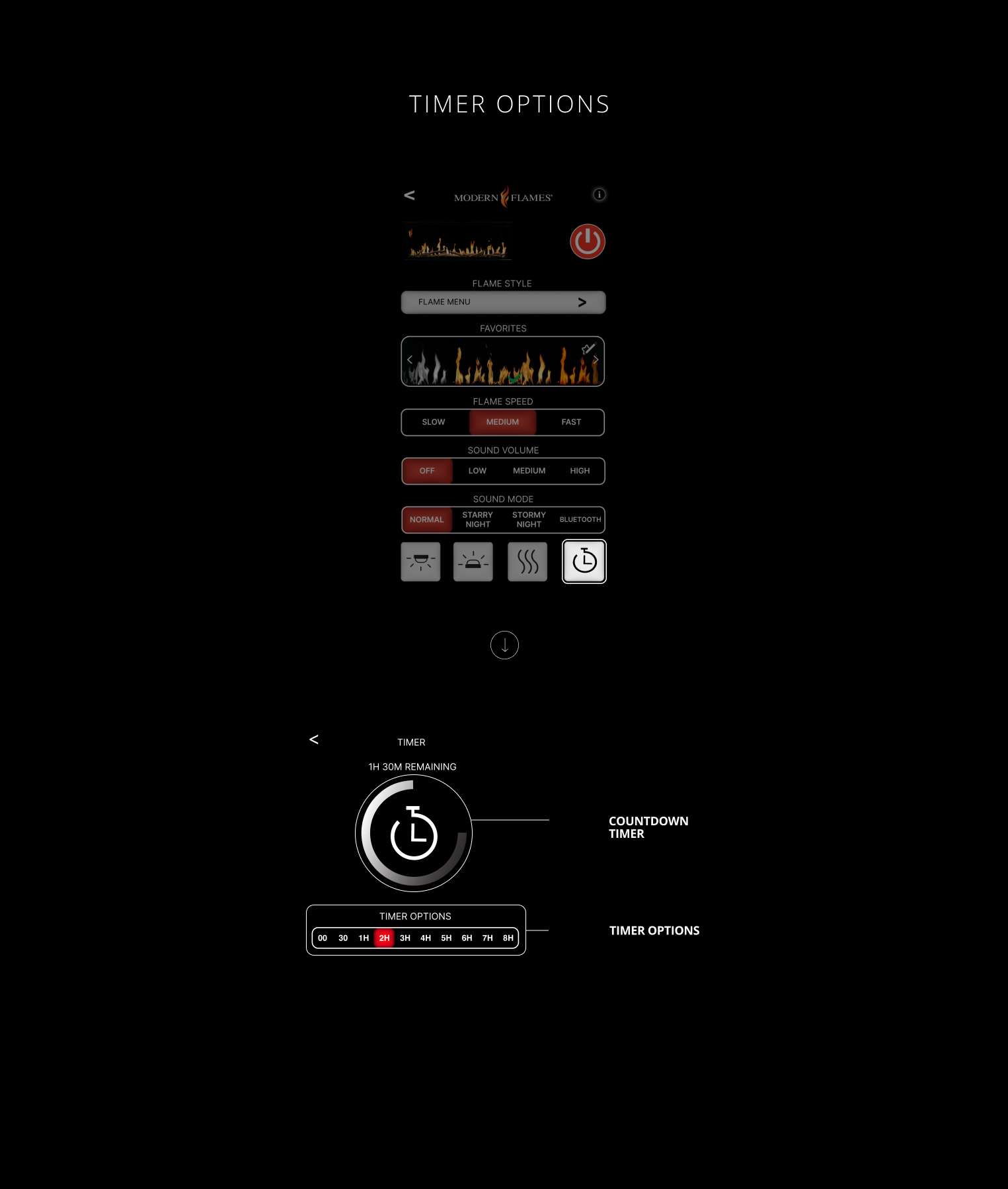

Desktop_TimerOptions

Back to Top

Displays the remaining time left on the selected timer. Shows OFF when not in use. Once the timer reaches zero, the fireplace will turn off.

Sets the fireplace time to turn off after the selected amount of time. Slide the red indicator to the desired run time position to change the timer. The fireplace will turn off once the timer reaches zero. Sliding the red indicator to the 00 position turns the timer off. The fireplace will remain on until it is manually turned off.

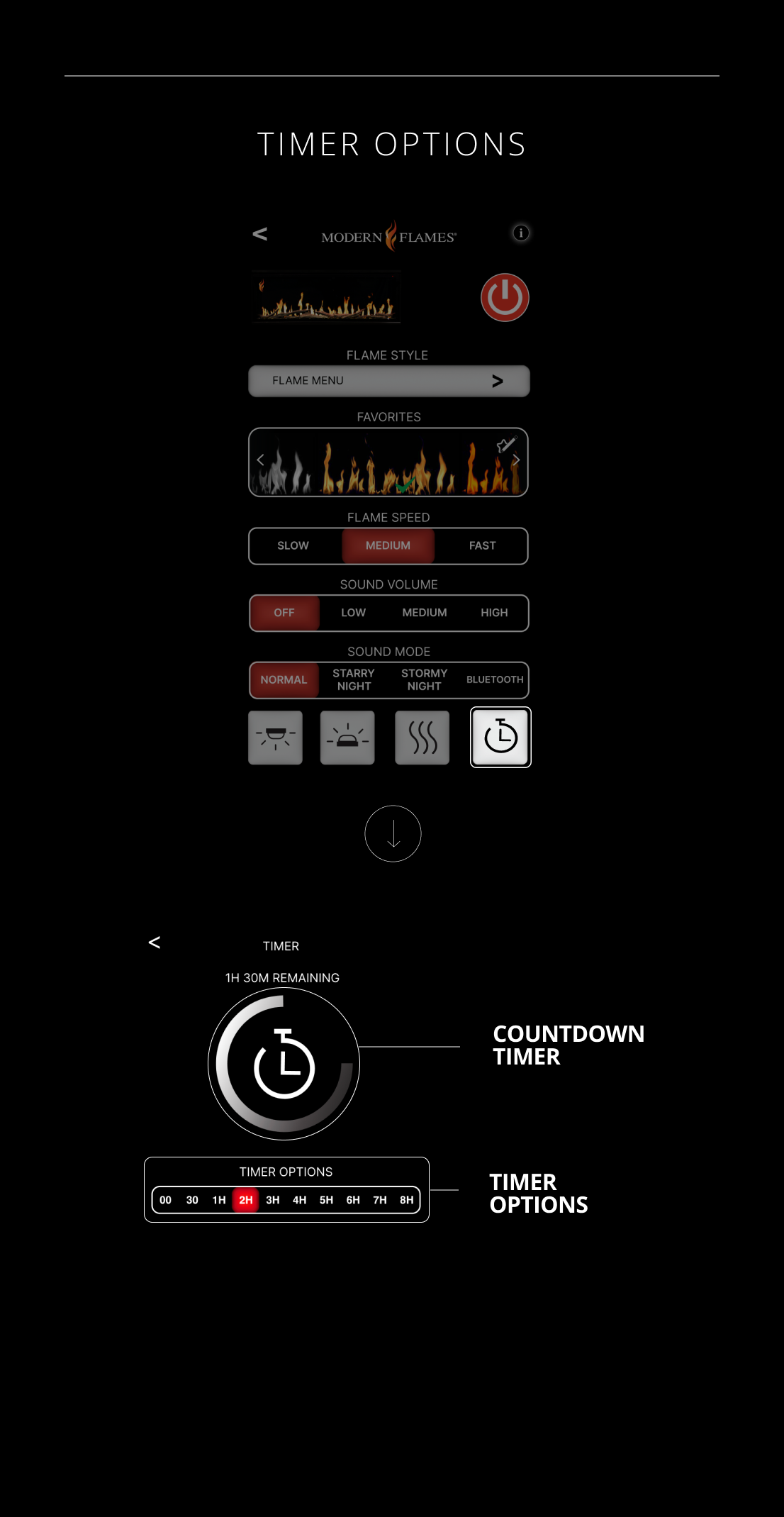

Phone_TimerOptions

Displays the remaining time left on the selected timer. Shows OFF when not in use. Once the timer reaches zero, the fireplace will turn off.

Displays the remaining time left on the selected timer. Shows OFF when not in use. Once the timer reaches zero, the fireplace will turn off.
